Eberle gripper works with wood

3D Portal with Eberle 4-Finger Vacuum Gripper: Precision for Plate Handling

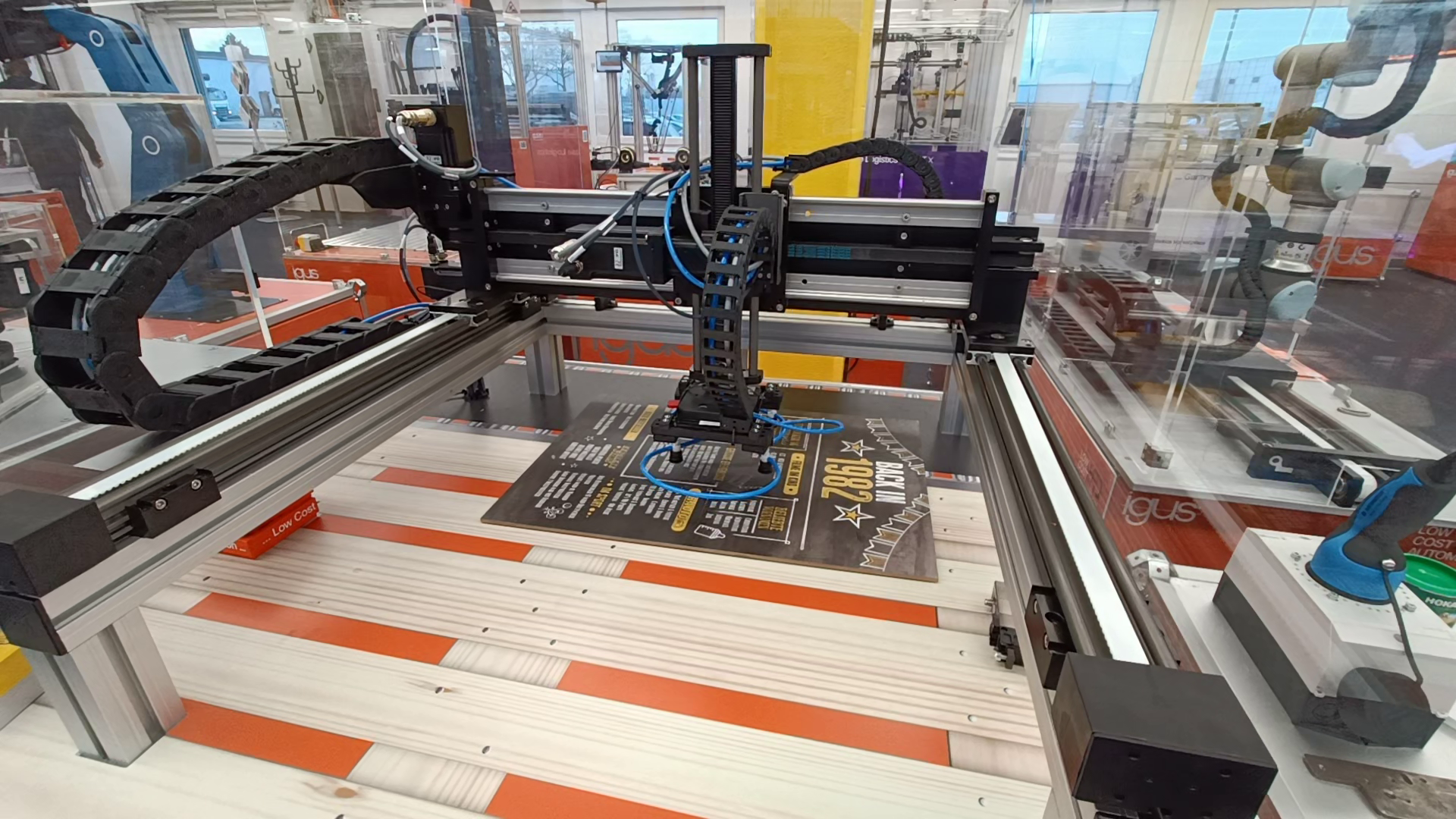

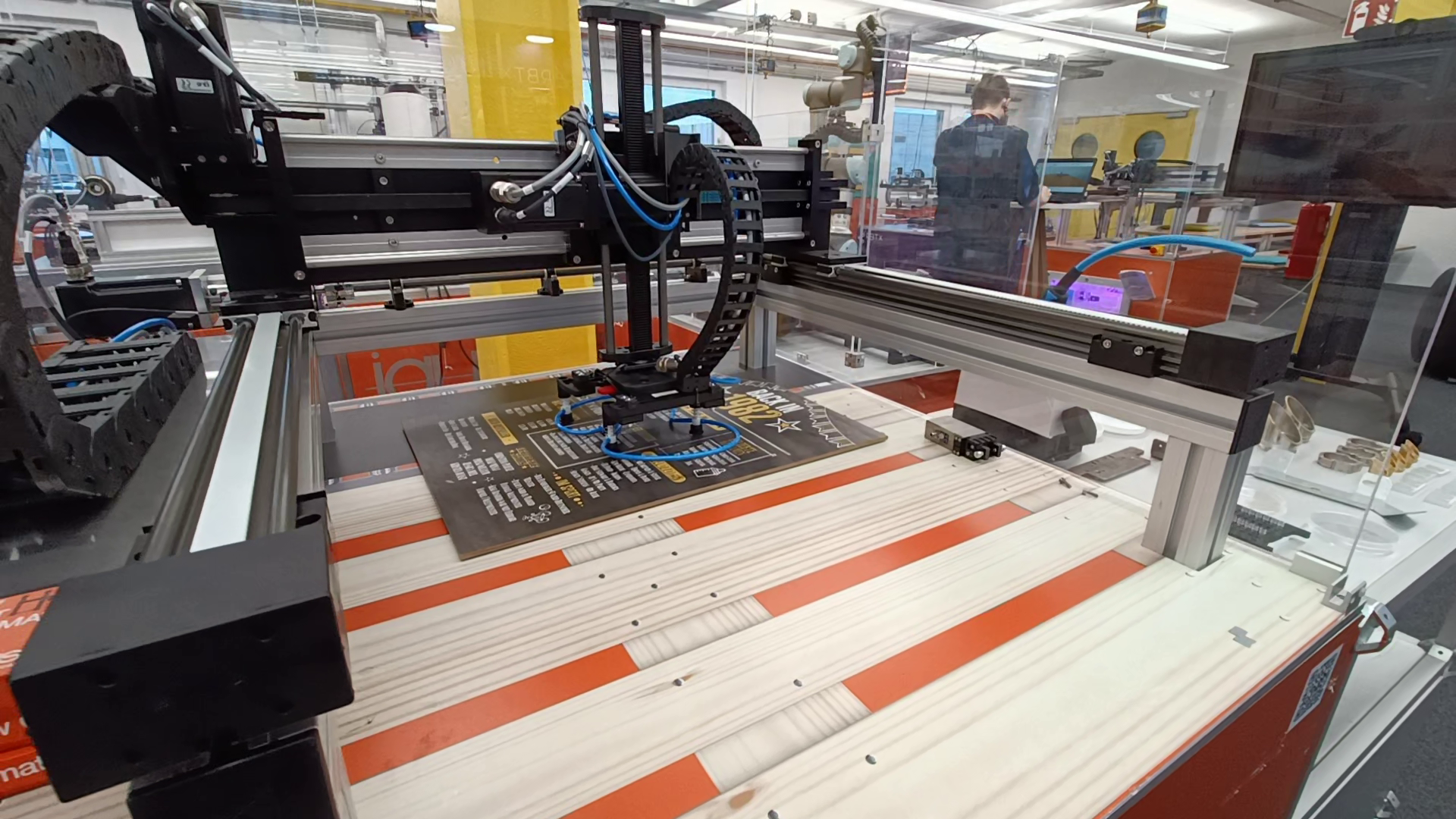

In this customer test, a three-dimensional portal was paired with an Eberle 4-finger vacuum gripper to assess its performance in plate handling. The test proved highly successful, demonstrating the gripper’s ability to handle plates weighing up to 2 kg with reliability and precision. Suitable for components ranging from 50 mm to 200 mm, the gripper showcases versatility in various applications, while customized solutions like H-profiles up to 350 mm can be produced upon request.

What is the Application?

This system automates plate handling and positioning, making it ideal for manufacturing, quality control, and logistics setups that require high precision and adaptability.

What are the Advantages of the Solution?

• High Versatility: Handles a range of plate sizes with options for customization.

• Precision Handling: Reliable vacuum grip ensures secure transport of components.

• Broad Applicability: Usable in diverse industries with varying material requirements.

What are the Advantages of the Robot?

The 3D portal paired with the Eberle vacuum gripper offers:

• Efficient Integration: Seamlessly adaptable to 3D portal systems for extended functionality.

• Enhanced Load Capacity: Supports plates up to 2 kg, ensuring stability.

• Custom Solutions: Tailored gripper extensions available for unique applications.

Optimizing Plate Handling with Eberle and 3D Robotics

This 3D portal and 4-finger vacuum gripper solution delivers precise and versatile plate handling capabilities. By accommodating a range of sizes and offering customization options, it enhances workflows across industries, reducing manual effort and increasing productivity in automated operations.
